GRAC00C5 Rugged Graphite

Redlion Việt Nam

Specifications

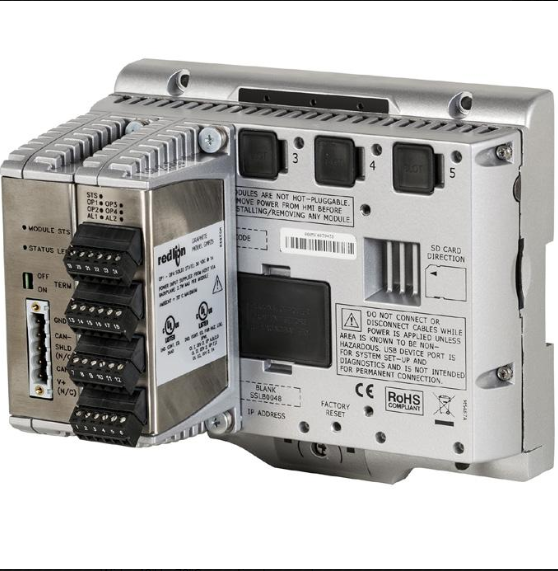

Red Lion’s Graphite® Core Controller is a rugged standalone industrial controller that features all-metal construction and works with a variety of I/O modules to combine IEC 61131 control capabilities with networking and data visualization alongside the core functionality – protocol conversion, data logging and web serving – of a Graphite seven inch HMI minus the graphical display.

Powerful Crimson 3.x Software with Crimson Control

• Intuitive drag-and-drop graphical software for easy setup

• Use industry-standard IEC 61131 programming languages such as Ladder Logic, Function Block, Structured Text and Instruction List

• Map over 300 drivers to other devices without the need for special gateways

• Easy single-solution configuration eliminates need for third-party software

Versatile I/O Module & Expansion Options

• Choose from a mix of I/O, PID control or communication to populate up to 5 local module slots

• Connect Graphite Expansion Racks to easily scale

• Extend even further with E3 I/O^™ high-density modules

Industry-Leading Protocol Conversion

• Communicate with over 300 major industrial protocols

• Support up to 18 simultaneous protocols

• Convert between serial, USB and Ethernet devices

• Manage multi-vendor environments with ease

Rugged Environmental Specifications

• Wide -40° to 70°C operating temperature

• High shock and vibration tolerance

• IP 20 rated

• CE, UL/cUL and UL/cUL Hazardous approvals

Powerful Integration Functionality

• Ethernet, USB and serial ports make communication simple

• Built-in data logging enhances troubleshooting and helps meet regulatory requirements

• Robust web server provides remote visualization, access and control to reduce costly site visits

Accessories

Modules

GMCAN000 – GMCAN – Graphite® Module, CAN Protocol

GMDIOR00 – Digital Graphite Module, I/O, 8 Inputs, 6 Relay Outputs

GMDIOS00 – GMDIOS- Digital Graphite® Module, I/O, 8 Inputs, 6 Solid State Outputs

GMDN0000 – GMDN0000 – Graphite® Module, DeviceNet Protocol

GMHSPA00 – GMHSPA00 – Graphite® Module, HSPA+ Cellular Communication

GMINI800 – GMINI8- Graphite® Module, 8 DC Current Inputs

GMINV800 – GMINV8- Graphite® Module, 8 DC Voltage Inputs

GMJ19390 – GMJ1939 – Graphite® Module, J1939 Protocol

GMOUT400 – GMOUT4- Graphite® Module, 4 Analog Outputs

GMP1RA00 – GMP1RA- Graphite® Module, Single PID, Relay, Analog Outputs

GMP1RM00 – GMP1RM- Graphite® Module, Single PID, Relay, HCM

GMP1SA00 – GMP1SA- Graphite® Module, Single PID, SSR, Analog Outputs

GMP1SM00 – GMP1SM- Graphite® Module, Single PID, SSR Outputs, HCM

GMP2R000 – GMP2R- Graphite® Module, Dual PID, Relay Outputs

GMP2RM00 – GMP2RM- Graphite® Module, Dual PID, Relay, HCM Outputs

GMP2S000 – GMP2S- Graphite® Module, Dual PID, SSR Outputs

GMP2SM00 – GMP2SM- Graphite® Module, Dual PID, SSR, HCM Outputs

GMPBDP00 – GMPBDP00 – Graphite® Module, PROFIBUS DP Protocol

GMRTD600 – GMRTD6- Graphite® Module, 6 RTD Inputs

GMSG10R0 – GMSG1 Strain Gage Graphite® Module One Strain Gage Input, Relay Outputs

GMSG10S0 – Strain Gage Module 1 Strain Gage In, Solid State Out

GMSG11R0 – Two Input Graphite Strain Gage Module, Relay Outputs

GMSG11S0 – Strain Gage Module 2 Strain Gage In, Solid State Out

GMTC8000 – GMTC8- Graphite® Module, 8 Thermocouple Inputs

GMUIN400 – GMUIN4- Graphite® Module, 4 Universal Inputs
