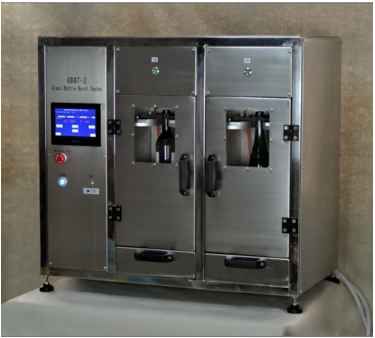

Máy kiềm tra chất lượng, sự cố chai thuỷ tinh GBBT-2 AT2E Vietnam

Tính năng cơ bản máy  GBBT-2 AT2E Vietnam

Characteristics  GBBT-2 AT2E Vietnam

• Dual station which is more efficient and convenient for uninterrupted test

• PLC integrated & Touch screen control

• User defined test cycle (up to 4 steps of pressure and holding time) satisfies different test request

• Automatic clamping and filling system

• Easy operation

• Easy sample installing, with auto clamping and water filling system

• Linear pressurization

• Can store 10 operators and 30 products

• User define the product lot number and sequence number

• Reviews the real-time testing curve

• Stainless steel design ensures the durability of tester

• Advanced safe door design ensures the safety of operator during a test.

• Special trash bin design makes the glass trash collection easily.

• RS232 output

• Can be connected to either printer or software

Technical specifications:  GBBT-2 AT2E Vietnam

• Measuring range:0-57 bar (each station)

• Resolution: 0.1bar

• Sample range: by order

• Power:115 V/ 230 V, 50-60Hz

• Dimension: 930 (L) x 540 (W) x 820 (H) mm

• Net weight: 95 kg

Optional parts:  GBBT-2 AT2E Vietnam

• Compatible clamping system

• Professional Software for GBBT-2

GBBT-2 AT2E, máy kiểm tra áp lực chai thủy tinh AT2E
