Cảm biến đo mức EAX2000-AB207 Finetek Việt Nam
EAX2000-AB291 Level transmitter Finetek

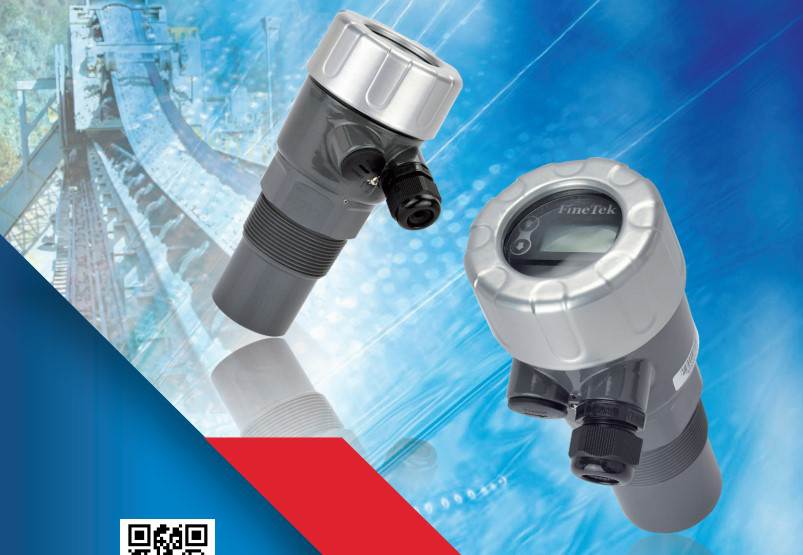

Thiết bị đo mức EAX Finetek Việt Nam
Thông tin sản phẩm hãng: Finetek
Thông tin sản phẩm TTN: Finetek Việt Nam
Cảm biến đo mức EAX là một thiết bị đo không tiếp xúc, chi phí thấp và dễ lắp đặt, bảo trì thấp. Nó có thể ứng dụng trong hầu hết các ứng dụng công nghiệp cho cả chất rắn và chất lỏng.
Đặc điểm sản phẩm:
•4~20mA 2 wire output (Fully isolated) with HART
•7~30Vdc power supply
•IP67 protection casing
•Transducer material: PVDF
•False echo detection
•Internal temperature compensation.
•Beam angle: 7
•Not affected by liquid temperature, S.G, viscosity
•Maximum range to 12 meters(40 ft).
EAX2000AB207 Finetek Việt Nam
Thiết bị đo mức EAX2000-AB291 Finetek
WORKING PRINCIPLE
During operation, the device emits a wave to the medium to be measured. The wave reflects off the surface and moves back to the device where a transducer calculates the distance. The distance is based on the time interval between transmission and reception of the wave. D= (334.1+0.6t) x T/2, where the D = the transmission distance; t = temperature; and T= transmission time. With 4~20mA output, it can be connected to the PLC,DSC and SCADA systems. In addition, it is also equipped with exclusive PULSE and AGC (Auto Gain Control) echo tracking technology to ensure accuracy and precision even in the harshest environments.
Ứng dụng của sản phẩm:
1. Water or waste water treatment equipment: pumps, open channels, dams and wells.
2. Edible-oils, sauces and beverages
3. Chemicals: paints, carbons, water, crude oil, epoxy resin, lime slurry and wax
4. Diesel, Petrochemicals, alchohols, solvents etc.
