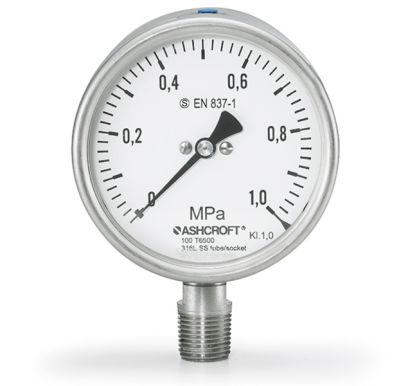

T6500 Pressure Gauge Ashcroft
Đồng hồ đo áp suất bằng thép không rỉ Ashcroft T6500
Thông số kỹ thuật đồng hồ áp suất Ashcroft T6500
- Accuracy: ±1% of span (class 1); optional ±0.5% of span
- Pressure Ranges: Vacuum to 1.000 bar
- Dial size: 100 mm (4″) and 160 mm (6″)
- Bourdon tube / socket: 316L stainless steel or Monel
- Case material / style: Stainless steel304 or 316L; T6500 (S3 solid front)
- IP66 / NEMA 4X
| Ashcroft Model | Range | Diaphragm Seal | Accessories | Remarks |
| 100=T6500=S=L=04L=RANGE=CS=GR= MP=NH=YW=CD4=CD5 | 0 – 4000 KPAG & 0–580 PSIG |
20–203HH–04T–CK–YT–CD5–1500#RJ (P=2″ ANSI 1500#RTJ) | 316SS Gauge Protector – 04=PL02=SS=50=060, 316SS 3” Hex Long Nipple – S006.11.449.28, 316SS ½” NPT Shut off valve – N354.03.401.05, 316SS end plug – S006.14.441.03 |
316L SS Element & Socket.Glycerine Filled. Hastelloy C276 Diaphragm. |
| 100=T6500=S=L=04L=RANGE=CS=GR= MP=NH=YW=CD4=CD5 | 0 – 4000 KPAG & 0–580 PSIG |
20–203HH–04T–CK–YT–CD5–300#RF (P=2″ ANSI 300#RF) | 316SS 3” Hex Long Nipple – S006.11.449.28, 316SS ½” NPT Shut off valve – N354.03.401.05, 316SS end plug – S006.14.441.03 |
316L SS Element & Socket.Glycerine Filled. Hastelloy C276 Diaphragm. |
| 100=T6500=S=L=04L=RANGE=CS=GR= MP=NH=YW=CD4=CD5 | 0 – 4000 KPAG & 0–580 PSIG |
20–203HH–04T–CK–YT–CD5–300#RF (P=2″ ANSI 300#RF) | 316SS 3” Hex Long Nipple – S006.11.449.28, 316SS ½” NPT Shut off valve – N354.03.401.05, 316SS end plug – S006.14.441.03 |
316L SS Element & Socket.Glycerine Filled. Hastelloy C276 Diaphragm. |
| 100=T6500=S=L=04L=RANGE=CS=GR= MP=NH=YW=CD4=CD5 | 0 – 300 KPAG & 0–43 PSIG |
20–203HH–04T–CK–YT–CD5–300#RF (P=2″ ANSI 300#RF) | 316SS Gauge Protector – 04=PL02=SS=50=006, 316SS 3” Hex Long Nipple – S006.11.449.28, 316SS ½” NPT Shut off valve – N354.03.401.05, 316SS end plug – S006.14.441.03 |
316L SS Element & Socket.Glycerine Filled. Hastelloy C276 Diaphragm. |
| Nhà cung cấp | Đại lý phân phối Ashcroft tại Việt Nam |
|---|---|
| Xuất xứ | USA – Mỹ |
