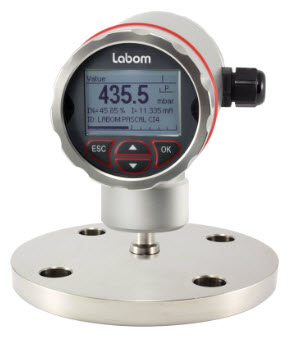

Đồng hồ áp suất TYPE SERIES CI4120 Labom Mess Vietnam

PRESSURE TRANSMITTER PASCAL CI4 – DIAPHRAGM SEAL OPERATION

TYPE SERIES CI4120 Labom Mess Vietnam.

Features TYPE SERIES CI4120 Labom Vietnam:

• Pressure transmitter with diaphragm seal technology for the measuring of relative and absolute pressures of gases, vapors and liquids
• Stainless steel case in sturdy design, degree of protection IP 65/67
• Accuracy ≤ 0.1 %
• High-resolution graphic display with Intuitive 4-button operation and backlight
• Comprehensive parameterising functions
• Comprehensive simulation and diagnostic functions
• Quick access to device data
• Development according to SIL2
• Nominal range 0,25 bar to 400 bar
• Turndown up to 100:1
• Measuring rate up to 100 Hz
• Output signal 4…20 mA with HART® protocol
• Configuration memory
• Digital communication via PDM, FDT/DTM, 375/475 Field Communicator
• Output functions: linear, invers, square root, table function with up to 64 support points
• Media temperature -40…400 °C
• Case design: – process connection bottom – process connection back
• Various process connections
• Approved according to NAMUR 95
• EAC declaration (upon request)

Options TYPE SERIES CI4120 Labom Vietnam:

• Accuracy ≤ 0.075 %
• Explosion protection for gases and dust
• Classification per SIL2
• Certificate of measuring equipment for Russian Federation
• Material certificate per EN 10204
• Further options
