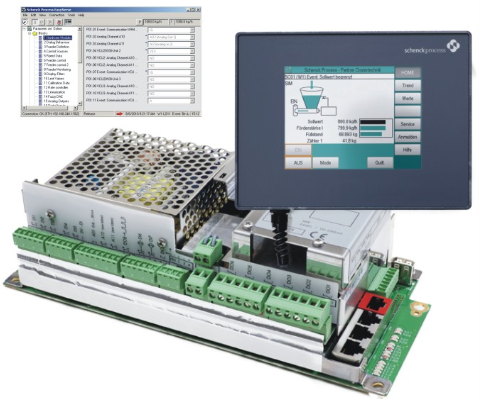

DISOCONT Tersus Measurement – Control and Supervisory System Schenck Process
DISOCONT Tersus Measurement – Control and Supervisory System Schenck Process
0877.105.430
cong@ttnvietnam.vn
DISOCONT Tersus | VCU 20100
Measurement – Control and Supervisory System
Thiết bị đo lường – Kiểm soát – Giám sát nguyên vật liệu trong ngành Thực Phẩm
DISOCONT Tersus is a system in modular design for controlling of continuous weighing and feeding applications. It is used wherever bulk solids flow has to be measured, fed or batched with the use of
- Loss-in-weight feeders (measuring/feeding)
- Weighfeeders
- Mass flow meters and feeders
- Solids flow meters and feeders
- Belt weighers
- Screw feeder
- Weighing hoppers
Technical Data
DISOCONT Tersus System unit VCU 20100
| Standard Inputs*) | Load cell input ±6 V, Ri > 87 Ω, 2 NAMUR-Inputs 0.03 … 3000 Hz for speed or belt sensor, flap limit switches, 5 Isolated, digital inputs 24 V, 20 mA, save isolation |
||||||
| Optional Inputs*) | Additional load cell input Up to 2 analogue input channels 0(4) … 20 mA / 0 … 10 V |
||||||
| Standard Outputs*) | 1 isolated analogue output 0(4) mA … 20 mA, max. 11 V, 6 relay outputs 230 V / 1 A save isolation, 1 relay output 230 V / 1 A with base isolation, Open collector output for external totalizer 30 VDC / 50 mA |
||||||
| Optional Outputs *) | Up to 2 analogue outputs 0(4) … 20 mA or 0 … 10 V |
||||||
| Serial interfaces | 4 Ethernet RJ45 Interface for operator panel local bus Interface for extension units VCU Connection EasyServe RS232 Optional: 1 x Fieldbus plug in module |
||||||
| Power supply | 24 VDC ±20 %; 110 V … 230 V –20 % +10 % 50 Hz or 60 Hz; 35 W |
||||||
| Ambient temperature | –25 °C … +50 °C outside of the housing |
||||||
| Protection class | IP20 | ||||||
| Approbation | CE; In preparation: UL, ATEX | ||||||
Field housing VFG 20103 or 20104 for VCU 20100
| Material | Fibre enforced plastics | |||||
| Dimensions [mm] | 260 x 160 x 90 | |||||
| Protection classes | Protection class IP65 (IEC 60529), NEMA4-Typ | |||||
| Material | Stainless steel | |||||
| Dimensions [mm] | 250 x 146 x 98 For installing an DIN top–hat-rail or for wall mounting |
|||||
| Protection classes | IP20 (IEC 60529) | |||||
DISOCONT Tersus Component-Overview
| Type hardware | Functions | ||
| VCU 20100 | Central control electronic, minimum 1 x per system Optional extension via up to 2 additional VCU |
||
| VAI 20100 | Extension by one analogue input channel | ||
| VAO 20100 | Extension by one analogue output channel 0(4) … 20 mA |
||
| VAO 20103 | Extension by one analogue output channel 0 … 10 V |
||
| VME 20102 | Extension by one load cell interface channel | ||
| VFG 20103/ VFG 20104 | VCU for field housing | ||
| VEG 20100 | VCU for cabinet enclosure | ||
| VHM 20100 | Operator panel for control panel mounting with supply by VCU 20100 | ||
| VHM 20101 | Operator panel for control panel mounting with separate power supply | ||
| VHM 20110 | Handheld operator panel with cable | ||
| VHM 20121 | Wireless handheld operator panel | ||
| VPB 28020 | PROFIBUS Interface | ||
| VPN 28020 | PROFINET IO Interface | ||
| VSS 28020 | Modbus Interface | ||
| VCB 28020 | DeviceNet Interface | ||
| VPC 20150 | Service-Software EasyServe for PC | ||
| VMO or VLG | Optional local motor control unit | ||
| Bluetooth Adapter for the VCU | |||
| Type Software for VCU 20100 | Functions | |||||
| VBW 20170 | Beltweighers MULTIBELT | |||||
| VWF 20170 | Weighfeeders MULTIDOS | |||||
| VLW 20170 | Loss–in–Weight Feeder MechaTron, ProFlex, PureFeed | |||||
| VIF 20170 | Solids flow meters and feeders MUTISTREAM |
|||||
| VMC 20170 | Mass flow meters and feeders MULTICOR | |||||
| Nhà cung cấp | Đại lý Schenck Process tại Việt Nam |
|---|---|
| Xuất xứ | Đức – Germany |
