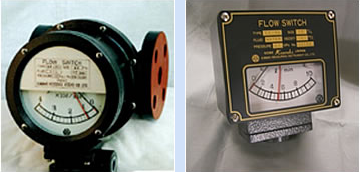

Công tắc lưu lượng Kawaki type SF – Đồng hồ đo lưu lượng Kawaki Type SF

Công tắc lưu lượng Kawaki

Suitable for high-temperature and high-pressure liquid of unclear liquid (oil etc.)
The contact of flow switch is the internal variable type, however, if you change the contact frequently, the external variable type is also manufactured.
For use outdoors and at places with bad environment, totally waterproof type (IEC, IP67) is also manufactured.

Công tắc lưu lượng Kawaki type SF - Đồng hồ đo lưu lượng Kawaki Type SF

Type	SF-M type instantaneous flow rate indicator SF-MA type instantaneous flow rate indicator + with lower limit (upper limit) contact SF-MAA type instantaneous flow rate indicator + with lower limit (upper limit) contact
Bore	3/8B to 12B Flange type RC3/8 to RC1.1/2 Screw type
Withstanding pressure	Standard product 1.0MPa Special order item 3.0MPa and above
Temperature	Standard product 80°C or less Special order item 300°C or less
Accuracy	Each indication scale ±3%
Capacity of contact	For the micro switch used for the contact, three types shown below are separately used depending on bore and flow rate. 15A: 125,250VAC、0.5A: 125VDC、0.25A: 250VDC 5A: 125,250VAC、0.5A: 125VDC、0.25A: 250VDC *10A: 125,250VAC
Material of main unit	FC250,CAC406,SS400,SUS304,SUS316,SUS316L etc.
Material of main section	C3604B,SUS304,SUS316,SUS316L etc.
Remark	*For places with frequent vibration, please use earthquake resistant type.
