Topflex Cable EMV-UV-2YSLCYK-J

Technical Data

Details

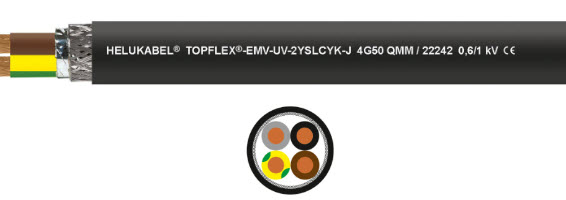

Cable Structure

•  Copper wire bare, finely stranded acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
•  Core insulation: PE
•  Core identification: brown, black, grey, green-yellow
•  G = with protective conductor GN-YE
•  Cores stranded with optimal lay lengths
•  1. Screen: plastic-coated aluminium foil (St)
• 2. Screen: braided screen of tinned copper wires, approx. coverage 85%
•  Outer sheath: Special-PVC
•  Sheath colour: black (RAL 9005)
•  Length marking: in metres

Properties

•  resistant to: UV radiation, weathering effects
•  for outdoor use
•  the materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
•  optimal screening enables interference-free operation of frequency converters
•  low coupling resistance ensures good electromagnetic compatibility
•  low mutual capacitance of the individual cores due to PE core insulation and low screen capacity, enable low-loss power transmission

Tests

•  flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2
•  UV-resistant acc. to DIN EN ISO 4892-2
•  weather-resistant acc. to DIN EN ISO 4892-2
•  electromagnetic compatibility acc. to DIN VDE 0875-11 / DIN EN 55011
•  certifications and approvals:
• EAC
