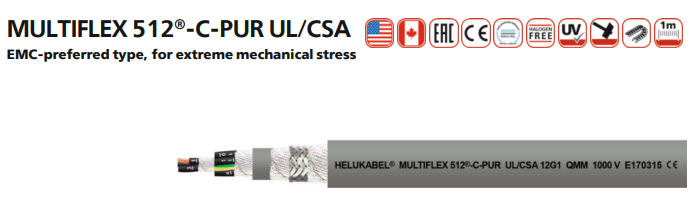

MULTIFLEX 512-C-PUR UL/CSA | Cáp điều khiển chống ăn mòn

APPLICATION

Industrial application: UL/CSA approved drag chain cable for use in machine and tool manufacturing, in robotics and in other constantly moving machine parts; for permanently flexible applications moving freely without tensile stress and without movement control in dry, damp and wet rooms as well as outdoors. A slippery PP core insulation, cut-resistance and a low-adhesion PUR outer sheath guarantee an optimum durability and excellent cost-efficiency. Oil and gas sector: for use as control and instrumentation cables on drilling platforms and ships, in land drilling as well as in chemical and petrochemical plants; resistant to drilling mud according to NEK TS 606 and thus ideal for high-performance applications such as pumping stations, compressors, generators and emergency power supply systems. EMC= Electromagnetic Compatibility; in order to optimise EMC properties, we recommend a double-sided and all-round large contact area of the copper braiding.

TECHNICAL DATA

PUR drag chain cable acc. to UL-Std. 758 (AWM) Style 21209, CSA-Std. C22.2 No. 210 – AWM I/II A/B

Temperature range

• flexible -30°C to +90°C
• fixed -40°C to +90°C

Permissible operating temperature of the conductor: +90°C

Nominal voltage: UL (AWM) AC 1000 V

Test voltage core/core: 3000 V

Coupling resistance: at 30 MHz, approx. 250 Ohm/ km

Minimum bending radius: flexible 7.5x Outer

CABLE STRUCTURE

Copper wire bare, extra finely stranded acc. to DIN VDE 0295 Class 6 / IEC 60228 Class 6

• Core insulation: Special-PP

• Core identification acc. to DIN VDE 0293-334, black cores with consecutive labeling in white digits

• Protective conductor: starting with 3 cores, G = with protective conductor GN-YE, in the outer layer, x = without protective conductor

• Cores stranded in layers with optimally matched lay lengths

• Fleece wrapping over each stranding layer, from 4 mm² without fleece wrapping

• Inner sheath: TPE

• Fleece wrapping

• Screen: braided screen of tinned copper wires, approx. coverage 85%

• Fleece wrapping

• Outer sheath: Special grade of full polyurethane acc. to DIN VDE 0207-363-10-2 / DIN EN 50363-10-2 (compound type TMPU), UL-Std. 758 (AWM) Style 21209

• Sheath colour: grey (RAL 7001)

• Length marking: in metres

TESTS

• flame-retardant acc. to DIN VDE 0482-332-1-2 / DIN EN 60332- 1-2 / IEC 60332-1-2, UL VW-1, CSA FT1

• oil-resistant acc. to DIN VDE 0473-811-404 / DIN EN 60811-404 / IEC 60811-404

• drilling mud resistant acc. to NEK TS 606

• UV-resistant acc. to DIN EN ISO 4892-2

• weather-resistant acc. to DIN EN ISO 4892-2

• Alternate bending test: tested on approx. 10 million cycles

• Certifications: DNV GL
