Đại lý phân phối can nhiệt L tại Việt Nam

Can nhiệt L đo nhôm lỏng | Can nhiệt L cho lò nấu

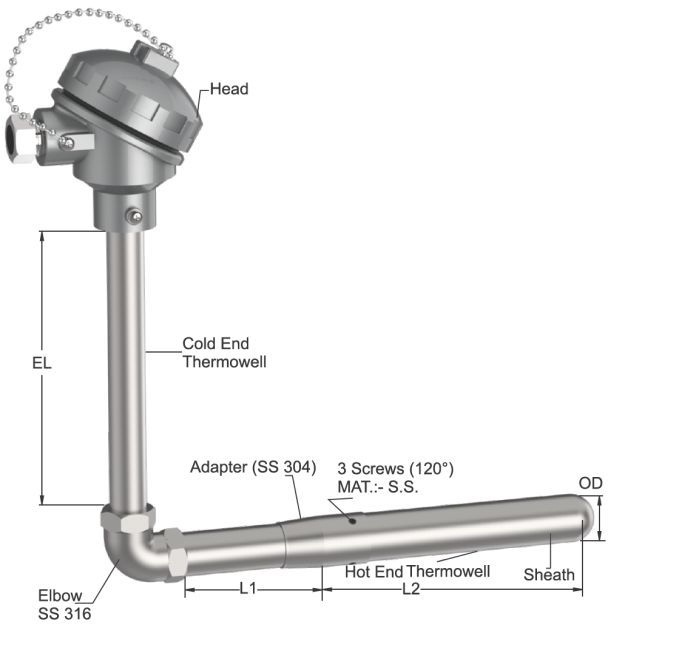

T – 950 THERMOCOUPLE FOR MOLTEN ALUMINIUM (“L” SHAPE)

Termination Style

• Die cast Alu  A  TYPE
• Die cast Alu  B  TYPE
• Die cast Alu IP-67 (Single Entry)
• Die cast Alu IP-67  (Double Entry)
• SS- Head
• Miniature Die cast Aluminium
• Plastic
• Die cast Alu Explosion / Flame proof IIB (Zone1 & 2)
• SS Explosion / Flame proof IIB (Zone1 & 2)
• Die cast Alu Explosion /  Flame proof IIC (T6)
• SS Flame proof  IIC (T6)
• Die cast Alu Explosion /  Flame proof IIC (T6) ATEX

Sheath Outer Diameter (mm)

• 1 mm
• 1.5 mm
• 3 mm
• 4.5 mm
• 6 mm
• 8 mm

Sheath Material

• SS 316
• SS 310
• Inconel-600

Thermowell Material Cold End

• SS 316
• SS 304
• SS 310
• Inconel-600
• Inconel-800

Cold End OD(mm )

• 1/2’SCH 40( 21.34)

Cold End ID(mm )

• 1/2’SCH 40( 17.12)

Cold end length (EL)

• 300 mm
• 450 mm
• 500 mm
• 700 mm

Thermowell hot end material

• Cast Iron
• Silicon Nitride

Hot end OD(mm )

• 28

Hot end ID(mm )

• 16

Length L1 mm

• 100 mm

Length L2 mm

• 300 mm, 450 mm, 500 mm, 750 mm, 900 mm, 1000 mm

Nominal Length(mm)

• 50 mm to 950 mm
