VOS-E | VOS-E-2632

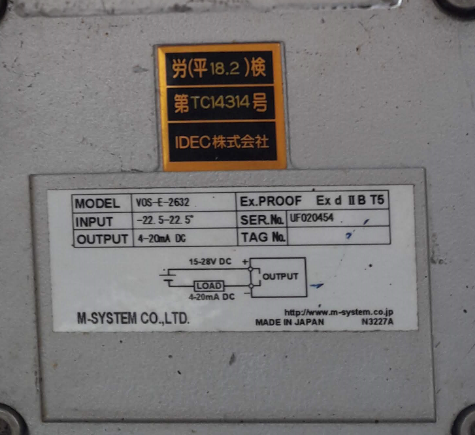

Chi tiết thiết bị:  VOS-E-2632

Functions & Features

• Differential transformer incorporated
• Light weight and compact design
• High resolution
• Zero & Span adjustable without opening the cover
• Direct or reverse action selectable

Typical Applications

Detecting stroke positions of a valve actuator or moving positions of other mechanisms and transmits standard 4 to 20 mA DC proportional to the position

GENERAL SPECIFICATIONS

• Degree of protection: IP55
• Action: Direct or reverse; field selectable by change of the jumper pins’ positions
• Wiring conduit: G 1/2 or 1/2 NPT female
• Cable gland: Flameproof packing (direct lead)
• Connection: M3.5 screw terminals (torque 0.8 N·m)
• Material Housing: Cast aluminium
• Position sensor: PBT (30 % fiber glass)
• Painting color: Silver
• Isolation: Output to metal housing
• Zero adjustment: -5 – +5 % of effective rotating angle
• Span adjustment: 60 – 105 % of effective rotating angle
