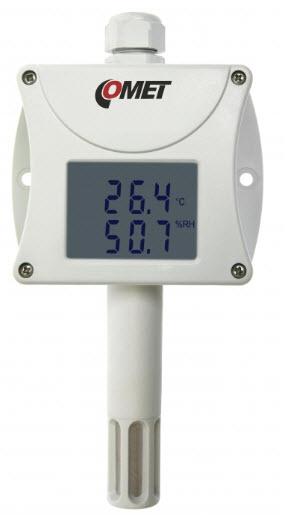

Cảm biến nhiệt độ và độ ẩm ngoài trời T3110 | cometsystem Việt Nam

Temperature and humidity outdoor, indoor probe with 4-20mA output

Ambient temperature, relative humidity transmitter. Weather sensor for environment monitoring. Outdoor, indoor use.

Built-in relative humidity, temperature sensors. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

TECHNICAL DATA

TEMPERATURE SENSOR

• Measuring range -30 to +80 °C
• Accuracy ±0.4 °C
• Resolution 0.1 °C

HUMIDITY SENSOR

• Measuring range 0 to 100 % RH
• Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
• Resolution 0.1% RH

DEW POINT

• Measuring range -60 to +80 °C
• Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
• Resolution 0.1 °C

GENERAL TECHNICAL DATA

• Operating temperature -30 to +80 °C
• Channels internal temperature and humidity sensor
• Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
• Output 4-20 mA, galvanic isolated
• Range of humidity sensor temperature compensation all temperature range
• Configuration of output user adjustable from PC; measured range + value
• Power 9-30 Vdc
• Protection class IP65 electronics; IP40 sensors
• Dimensions 88,5 x 170 x 39,5 mm; stem length 75 mm
• Weight approx. 150 g
