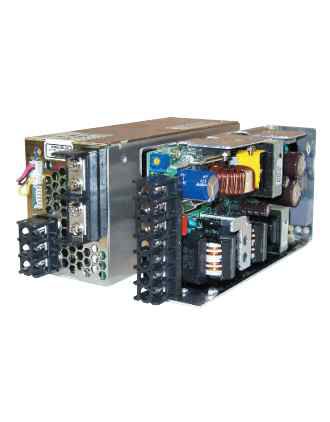

Bộ nguồn HWS100-24/A TDK-Lambda

HWS100-24/A , HWS150-24/A là các bộ nguồn, power supply của hãngTDK-Lambda

0877.105.430

cong@ttnvietnam.vn

Liên hệ

Chi tiết sản phẩm

HWS100-24/A Bộ nguồn TDK-Lambda Việt Nam

Power Supply HWS150-24/A hãng TDK-LAMBDA

Đặc điểm kĩ thuật của Bộ nguồn HWS:

● Environmentally-friendly: Conforming to RoHS directives High-efficiency technology reduces power loss by heat generation. Fan stopping in power-off by external control realizes silence and energy saving.

● Easy to use: All models in the same hight of 82mm. Mountable in 2U-height racks without dead space.

● Safety and reliability: “Safety terminal” covering current flowing part secures safety for users. “No screw-dropping” design prevents from losing screws during maintenance operation.

● HWS1500-48 realizes as high efficiency as 90%. Synchronous rectifier circuit improved efficiency of low voltage models by over 10% (HWS150-5)

♦ Model HWS100-24/A đã được chuyển đổi qua model mới là HWS100A-24/A và HWS150-24/A đã được chuyển đổi thành model HWS150A-24/A

♦ Tính năng sản phẩm:

– Bảo hành trọn đời

– UL508 đã được phê duyệt

– Hiệu quả cao

♦ Một số model của dòng Series HWS :

Model Selector
Model	Peak Curr. A(2)	Max. Pwr. W	Peak Power W	Load Reg mV	Line Reg mV	Ripple Noise mV	Over- voltage V	Eff. typ % (1)
HWS300-3 tdk lambda việt nam	–	198		30	20	120	4.13 – 4.95	74/77
HWS600-3bộ nguồn tdk lambda	–	396		30	20	120	4.13 – 4.95	75/78
HWS1000-3 power supply tdk lambda		660		40	20	120	4.13 – 4.62	71/73
HWS1500-3nguồn cấp tdk		990		60	36	150	4.12 – 4.62	72/75
HWS300-5 filter tdk lambda	–	300		30	20	120	6.25 -7.25	79/82
HWS600-5 bộ lọc nhiễu tdk lambda	–	600		30	20	120	6.25 -7.25	80/83
HWS1000-5lọc nhiễu tdk lambda		1000		40	20	120	6.25 – 7	76/78
HWS1500-5		1500		60	36	150	4.0 – 6.0	77/81
HWS1000-6		1002		60	36	150	7.5 – 8.4	79/81
HWS1500-6	300	1500	1800	60	40	150	4.8 – 7.2	79/82
HWS1000-7	160	1005	1200	60	36	150	9.38 – 10.5	80/82
HWS1500-7	240	1500	1800	60	40	150	6.0 – 9.0	81/83
HWS300-12	–	324		72	48	150	15 – 17.4	80/83
HWS600-12	–	636		72	48	150	15 – 17.4	80/83
HWS1000-12	100	1056	1200	100	48	150	15 – 17.4	82/85
HWS1500-12	–	1500		72	48	150	15 – 17.4	82/85
HWS300-15	–	330		90	60	150	18.8 – 21.8	80/83
HWS600-15	–	645		90	60	150	18.8 – 21.8	81/84
HWS1000-15	80	1050	1200	120	60	150	18.8 – 21.8	83/85
HWS1500-15	–	1500		90	60	150	18.7 – 21.8	83/87
HWS300-24	16.5	336	396	144	96	150	30 – 34.8	82/85
HWS600-24	31	648	744	144	96	150	30 – 34.8	82/85
HWS1000-24	58.5	1104	1404	150	96	150	30 – 34.8	85/87
HWS1500-24	105	1560	2520	144	96	200	30 – 34.8	84/88
HWS1000-36	39	1104	1404	150	144	200	45 – 49.7	85/88
HWS1500-36	70	1512	2520	150	144	200	45 – 49.7	84/88
HWS300-48	–	336		288	192	350	55.2 – 64.8	82/85
HWS600-48	–	624		288	192	350	55.2 – 64.8	83/86
HWS1000-48	29	1104	1404	300	192	200	55.2 – 64.8	86/88
HWS1500-48	–	1536		288	192	200	55.2 – 64.8	86/90
HWS1000-60	23.4	1104	1404	360	240	400	69 – 75	85/88
HWS1500-60	42	1536	2520	360	240	400	69 – 75	86/90
