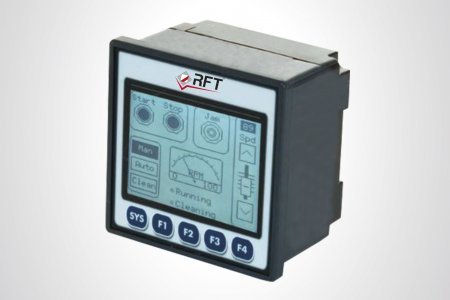

CONTROL SYSTEM FOR BRAKES TYPE RCS

Bộ điều khiển phanh type RCS ROMER Fordertechnik

Product description

„RCS“ is an microprocessor controlled monitoring system for brake systems in crane and industrial applications.

RCS serves for the purpose of early defect detection, damages limitation and guarantees a smooth running of the operative workflow.

Possible monitoring functions:

• Run-time monitoring for opening- and closing times
• Oil-temerature in thruster
• Oil-niveau in thruster
• Remaining lift monitoring in the thruster
• Wear monitoring
• Spring fracture monitoring
• Rotational speed or standstill monitoring at brakes
• Overspeed monitoring
• Monitoring of the drum and disc temperature
• Force measurement in the optical leverage of the brake
• Synchronous monitoring of redundant brake system
• Differences of the basic adjustment after the commissioning

FUNCTIONAL PRINCIPLE

Available in 2 versions: STANDARD and PRO version

RCS-System STANDARD:

• Touch-Display Monochrom
• 12 Digital input
• 4 Analog input
• 6 Relays-output
• Internal bus to extend the in- output
• SD-Memory-Card max. 2 Gbyte

RCS-System PRO:

• Touch-Display  Color
• 12 digital input
• 4 analoge input
• 6 Relays-output
• Internernal bus to extend the input and output
• Ethernet on Board
• Web-Sever
• SD-Memory-card max. 32 Gbyte

OPTIONS

• GPRS/GSM (SIM-card necessary)
• SMS
• Ethernet-Modul
• Profibus DP-Slave
• E/A-Extension until 4096 E/A at STANDARD version
  (digital and analog)
• I/O-extension until 4096 E/A at PRO version
  (digital and analog)

Further protection monitoring on request:

• Bearing temperature in hoists (gear box, engine)
• Oil temperature monitoring in hoist gear-boxes
• Oil-niveau monitoring in hoist gear-boxes
• Storage pressure monitoring at fail-safe systems
