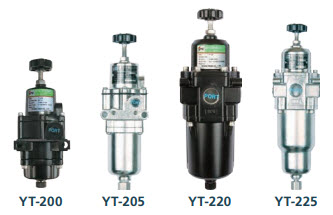

Air Filter Regulators YT-200
Bộ điều chỉnh khí nén
Design features
- Stable Output and repeatability. Provides constant control under variable flow rates and supply pressures.
- Relief flow capability. Discharges pressure if outer pressure is higher than set pressure.
- Light weight and compact size. Reduces installation costs.
- micron filter. Protects pneumatic instruments from dirty air.
- Manual or Auto Draining Option
| Item Type | YT200 | YT-220 | YT-205 | YT-225 | |||
| Max. Supply Pressure |
1.7 MPa (17 bar) | ||||||
| Max. Output Pressure |
0.42 MPa (A Type), 0.84 MPa (B Type) | ||||||
| Air Connection | PT (NPT) 1/4 | PT (NPT) 1/2 | NPT 1/4 | NPT 1/2 | |||
| Gauge Connection | PT (NPT) 1/4 | PT (NPT) 1/4 | NPT 1/4 | NPT 1/4 | |||
| Operating Temp. | -20 – 70’C (-4 – 158°F) (Standard type) | ||||||
| Min. Filtering Size | 5 micron | ||||||
| Material | Aluminium Diecasting | Stainless Steel 316 | |||||
| Weight | 0.6 kg (1.7 lb) |
0.86 kg (1.89 lb) |
1.4 kg (3.0 lb) |
2.1 kg (4.6 lb) |
|||
| Nhà cung cấp | Đại lý phân phối Yuong Tech tại Việt Nam |
|---|---|
| Xuất xứ | Châu Âu – EU |
