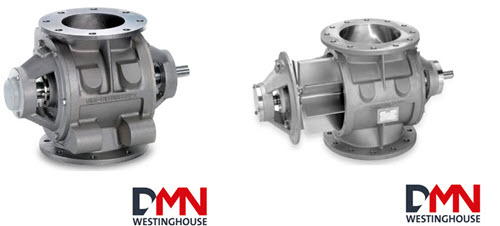

AL250 1 DMN Wesinghouse | AL-250-1 DMN | AL250 DMN Westinghose
AL250 1 DMN Wesinghouse | AL-250-1 DMN | AL250 DMN Westinghose
Rotary valves DMN Westinghouse, Diverter valves DMN Westinghouse, Star valves DMN Westinghouse, van xoay DMN Westinghouse, van quay DMN Westinghouse, van quay xả liệu DMN Westinghouse, van quay cấp liệu DMN Westing House, van nạp liệu DMN Westinghouse, van chuyển hướng DMN Westinghouse, airlock valves DMN Westinghouse, Dustlock DMN Westinghouse
0877.105.430
cong@ttnvietnam.vn
Đại lý hãng DMN Wesinghouse tại Việt Nam
ROTARY VALVE DMN WESTINGHOUSE
AL250 1 DMN Wesinghouse | AL-250-1 DMN | AL250 DMN Westinghose
RVNL157699 – RVNL 157706
218762
Bảng dưới đây thể hiện công suất và tốc độ rotor của từng loại và kích cỡ van DMN-Westinghouse.
Để van hoạt động tốt, tốc độ đầu rotor không được vượt quá 0,66m/giây. Tốc độ rotor tiêu chuẩn thường nằm trong khoảng 15-25 vòng/phút tùy thuộc vào kích thước của van. Công suất phụ thuộc vào mô men xoắn và tốc độ rotor yêu cầu tối thiểu.
|
Type |
Size |
Minimum |
Max. |
Max. advised |
Max. allowed |
Rotor diameter |
|
torque |
Power |
Rotor speed |
Rotor speed |
|
AL–BL |
150 |
145 Nm |
0,75 kW |
30 RPM |
30 RPM |
170mm |
|
AL–BL |
175 |
145 Nm |
0,75 kW |
30 RPM |
30 RPM |
210mm |
|
AL–BL |
200 |
215 Nm |
1,1 kW |
30 RPM |
30 RPM |
260mm |
|
AL–BL |
250 |
290 Nm |
1,5 kW |
30 RPM |
30 RPM |
310mm |
|
AL–BL |
300 |
360 Nm |
1,5 kW |
30 RPM |
30 RPM |
380mm |
|
AL–BL |
350 |
510 Nm |
1,5 kW |
28 RPM |
30 RPM |
450mm |
|
AL |
400 |
1200 Nm |
3 kW |
23 RPM |
30 RPM |
555mm |
|
AL |
450 |
1875 Nm |
4 kW |
20 RPM |
30 RPM |
620mm |
|
AL |
500 |
2500 Nm |
4 kW |
18 RPM |
26 RPM |
720mm |
|
AML |
150 |
145 Nm |
0,75 kW |
30 RPM |
170mm |
|
AML |
200 |
145 Nm |
0,75 kW |
30 RPM |
210mm |
|
AML |
250 |
215 Nm |
1,1 kW |
30 RPM |
260mm |
|
AML |
300 |
290 Nm |
1,5 kW |
30 RPM |
310mm |
|
AML |
350 |
360 Nm |
1,5 kW |
30 RPM |
380mm |
List code Rotay Valve DMN Westinghouse đã từng cung cấp
| Type | Order No. |
| AL 150 DMZC Rotary valve DMN Westinghouse | 72731 |
| AL 150 EX.1 DMN Westinghouse | 60432 |
| AL 175 EX.4C Rotary valve DMN Westinghouse | 75540 |
| AL 175 EX.4C DMN Westinghouse | 75541 |
| AL 200 EX.1 Rotary valve DMN Westinghouse | 83287 |
| AL 200 EX.1 DMN Westinghouse | 83288 |
| AL 200 EX.4C Rotary valve DMN Westinghouse | 75545 |
| AL 200 EX.4C DMN Westinghouse | 75546 |
| AL 200 EX.4C Rotary valve DMN Westinghouse | 75547 |
| AL 200 EX.4C DMN Westinghouse | 83277 |
| AL 200 EX.4C Rotary valve DMN Westinghouse | 83278 |
| AL 200 EX.4C DMN Westinghouse | 83279 |
| AL 200 EX.4C Rotary valve DMN Westinghouse | 83280 |
| AL 200 EX.4C DMN Westinghouse | 83281 |
| AL 250 EX.1 Rotary valve DMN Westinghouse | 65767 |
| AL 250 EX.1 DMN Westinghouse | 65768 |
| AL 250 EX.4C Rotary valve DMN Westinghouse | 83282 |
| AL 250 EX.4C DMN Westinghouse | 83283 |
| AL 250 EX.4C Rotary valve DMN Westinghouse | 83284 |
| AL 250 EX.4C DMN Westinghouse | 83285 |
| AL 250 EX.4C Rotary valve DMN Westinghouse | 83286 |
| AL 300 EX.1 DMN Westinghouse | 65773 |
| AL 300 EX.1 Rotary valve DMN Westinghouse | 83289 |
| AL 300 DMZC DMN Westinghouse | 83295 |
| AL 300 EX.4C Rotary valve DMN Westinghouse | 83291 |
| AL 300 EX.4C DMN Westinghouse | 83292 |
| AL 350 EX.1 Rotary valve DMN Westinghouse | 62347 |
| AL 350 EX.4C DMN Westinghouse | 73664 |
| AL 350 EX.4C Rotary valve DMN Westinghouse | 75550 |
| AML 200 EX.1 DMN Westinghouse | 73665 |
| AML 200 EX.1 Rotary valve DMN Westinghouse | 83290 |
| AML 200 EX.4C DMN Westinghouse | 65775 |
| AML 200 EX.4C Rotary valve DMN Westinghouse | 65776 |
| AML 250 EX.1 DMN Westinghouse | 62350 |
| AML 250 EX.1 Rotary valve DMN Westinghouse | 62351 |
| AML 250 EX.4C DMN Westinghouse | 53139 |
| AML 250 EX.4C Rotary valve DMN Westinghouse | 62352 |
| AML 250 EX.4C DMN Westinghouse | 62353 |
| AML 250 EX.4C Rotary valve DMN Westinghouse | 62354 |
| AML 300 EX.4C DMN Westinghouse | 62356 |
| AML 300 EX.4C Rotary valve DMN Westinghouse | 62357 |
| AML 300 EX.4C DMN Westinghouse | 62358 |
| AML 350 EX.1 Rotary valve DMN Westinghouse | 51373 |
| AML 350 EX.4C DMN Westinghouse | 63075 |
| AML 350 EX.4C Rotary valve DMN Westinghouse | 63076 |
| AML 350 EX.4C DMN Westinghouse | 65777 |
| AML 350 EX.4C Rotary valve DMN Westinghouse | 65778 |
| BL 150 EX.1 DMN Westinghouse | 51375 |
| BL 175 EX.1 Rotary valve DMN Westinghouse | 51377 |
| BL 200 EX.1 DMN Westinghouse | 63102 |
| BL 250 EX.1 Rotary valve DMN Westinghouse | 62362 |
| BL 250 EX.4C DMN Westinghouse | 53137 |
| BL 250 EX.4C Rotary valve DMN Westinghouse | 62359 |
| BL 250 EX.4C DMN Westinghouse | 62360 |
| BL 250 EX.4C Rotary valve DMN Westinghouse | 62361 |
| BL 250/300 DMZC DMN Westinghouse | 62365 |
| BL 300/350 DMZC Rotary valve DMN Westinghouse | 65779 |
| BL 300/350 DMZC DMN Westinghouse | 73666 |
| BL 250/350 DMZC Rotary valve DMN Westinghouse | 75577 |
| BL 300 EX.4C DMN Westinghouse | 53129 |
MODEL AL-250-1
SERIAL # RVUS132971
16 RPM
DMN ORDER # 22190354-1-1
10” DIAM INLET/OUTLET W/ 16” DIAM FLANGE
18” INLET TO OUTLET
FIXED TIP ROTOR
2) PRESSURE RELEIF PORTS
STAINLESS STEEL ROTOR; CAST IRON
SEW EURODRIVE GEAR REDUCER 106.58:1 RATIO
1 HP SEW MOTOR
460 V 1.56 A 300-1800 RPM
ALL STAINLESS TRANSITIONS
TRANSITION TO 12” I.D. 16” O.D. SQUARE FLANGE
TRANSITION TO 5 ½” O.D. PNEUMATIC CONVEYOR TUBE
TRANSITION WITH SLIDE GATE MAINTENANCE CUT-OUT
| Nhà cung cấp | Đại lý DMN Westinghouse tại Việt Nam |
|---|---|
| Xuất xứ | Châu Âu – EU |
