**Masoneilan* 78 Model Air Filter Regulator**

The Model 78 Series pressure regulators are compact, lightweight, high-performance pressure reducing instruments. They are used primarily for supplying a stable source of air to process control equipment such as current to pneumatic transducers and control valve positioners.

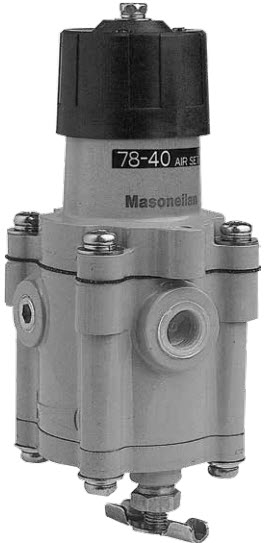

Air Filter Regulator 78-40 Masoneilan - Đại lý phân phối Masoneilan tại Việt Nam

Numbering System

Model No: 78-40

Pressure Range: 5-100 psi (35-700 kPa), (0.35-7 bar)

Description: Air Loading with Relief and Filter

Specifications

Inlet Pressure Rating	210 psi (1.5 MPa, 15 bar) maximum
Pressure Set Range	5-40 psi (35-280 kPa, 0.35-2.8 bar)5-100 psi (35-700 kPa, 0.35-7 bar)
Connection	1/4 NPT
Rated Cv	0.25
Filter Element	Sintered Porous Polyethylene (5μ)
Ambient Temperature Range	40° to +83°C (-40° to +182°F)
Air Consumption	0.004 scfm (100 sccm)
Weight	14 oz. (0.4 kg)
Materials of Construction	See table next page
