Thông số kỹ thuật  P15000 Knick.

The first standard-signal isolation amplifier with broad-range power supply in the 6-mm class.

The VariTrans A 21000 isolates, transmits and converts 0 to 20/4 to 20 mA and 0 to 10 V with a high level of accuracy. In spite of its modular housing being only 6 mm wide, the new VariTrans isolation amplifier provides maximum protection of personnel and equipment through protective separation up to a working voltage of 300 V conforming to EN 61140. The test voltage is 2.5 kV AC. It can be supplied with either 24 V DC or 230 V AC.

Facts

• Broad-range power supply
  24 to 110 V DC (+/-25 %) and 110 to 230 V AC (+/-10 %)

• Standards-compliant personal and plant protection
  Protective separation according to EN 61140

• 3-port isolation
  Prevention of incorrect measurements caused by potential differences

• Ideal value for money
  High accuracy and isolation – 2.5 kV AC test voltage

• Easy installation
  DIN rail bus connectors allow for easy and extremely cost efficient connection of the power supply to several VariTrans A 21000 or other Knick products in 6 mm housings.

• Cost reduction with smaller enclosure
  More channels per meter DIN rail thanks to space-saving 6 mm housing and closely packed mounting

• Long service life
  Extremely low failure rate  (MTBF of 280 years) due to reduced self-heating

• High accuracy and temperature stability
  Gain error 0.2 % and temperature coefficient 0.01 %/K

• Calibrated range selection
  without complicated readjustments

• Easy configuration
  DIP switch accessible from outside

• Adjustable or fixed-range models

• International use
  UL approvals for US and Canada

• 5-year warranty

Các sản phẩm khác

+ A20300 Knick

+ P15000 Knick

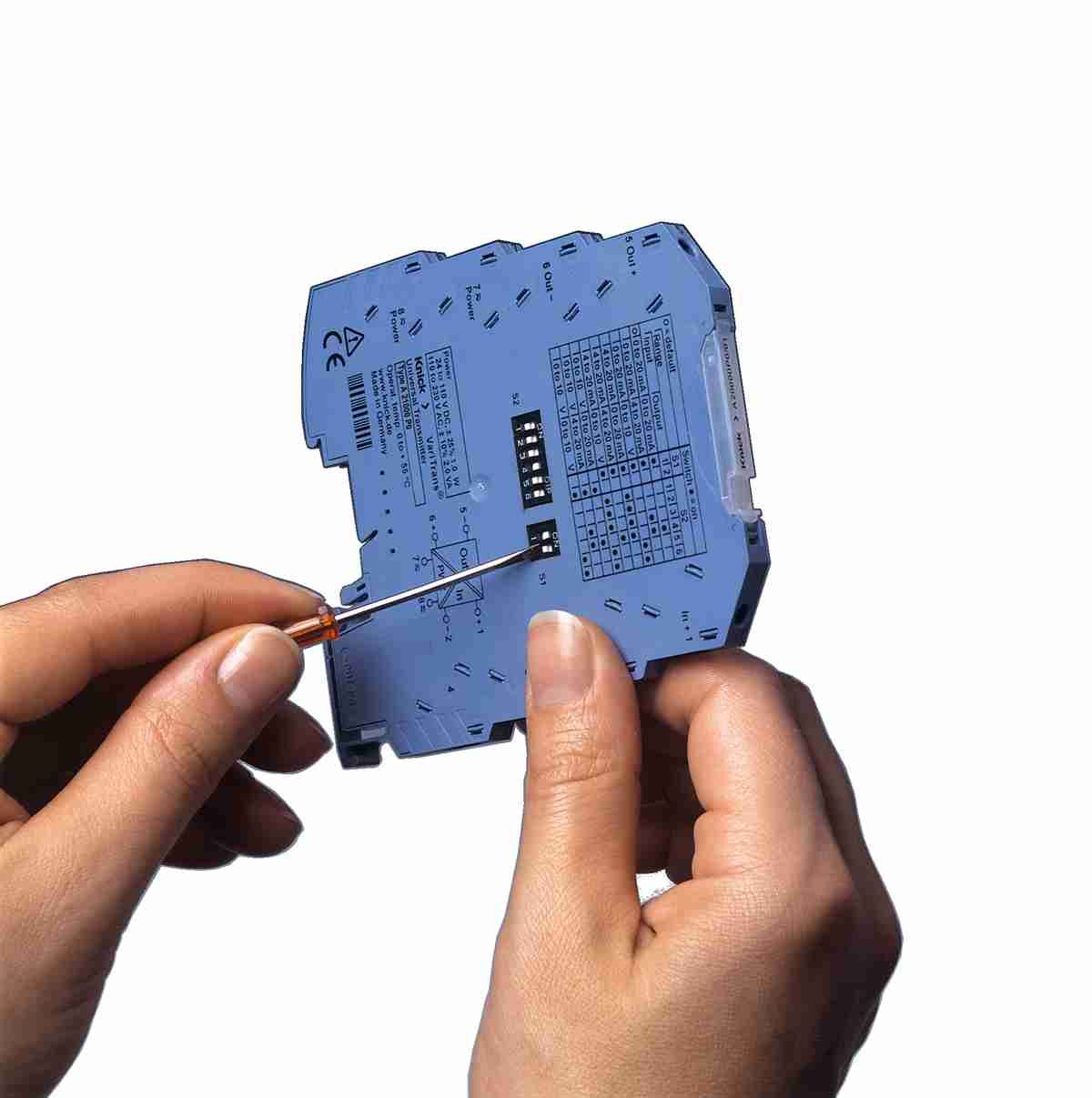

A21000 Knick- bộ chuyển đồi tín hiệu A21000 Knick Việt Nam
