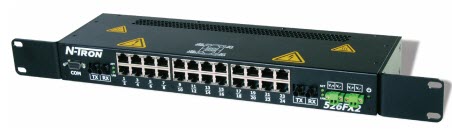

526FX2 UNMANAGED INDUSTRIAL ETHERNET SWITCH, SC 2KM

PRODUCT FEATURES

• Full IEEE 802.3 and 1613 Compliance
• NEMA TS1/TS2 Compliance
• American Bureau of Shipping (ABS) Type Approval
• Twenty-four (24) 10/100 BaseTX RJ-45 Ports
•  Two (2) 100BaseFX Port, ST (shown) or SC
•  -40ºC to 85ºC Operating Temperature
• Auto Sensing 10/100BaseTX, Duplex, and MDIX
• Store-and-Forward Technology
• Up to 2.6 Gb/s Backplane Throughput
• Rugged Industrial 19″ Rackmount* Enclosure
• Redundant Power Inputs (10-30 VDC)

Bi-Color LEDs For Link, Speed, Activity & Duplex Status Advanced Management Functions (With -A option only):

•  IGMP Snooping
•  VLAN
• QoS
• Trunking and Mirroring
•  N-View™ (Remote Monitoring Using OPC Technology)

Switch Properties

• Number of MAC Addresses: 4,000
• Aging Time: 20s, Programmable (-A option)
• Latency Typical: 2.1 μs
• Switching Method: Store & Forward

Case Dimensions

• Height – 1U: 1.8″ (4.5 cm)
• Width: 19″ (48.3 cm)
• Depth: 4.2″ (10.6 cm)
• Weight: 3.7 lbs

Electrical

• Redundant Input Voltage: 10-30 VDC
• Input Current: 1 A @ 24 VDC
• BTU/hr: 81.9 @ 24 VDC
• Inrush: 9.5 amp / 0.75 ms @ 24 VDC
• N-Tron Power Supply: NTPS-24-3 (3 amps @ 24 VDC)

Environmental

• Operating Temperature: -40o C to 85o C
• Operating Humidity: 10% to 95% (Non Condensing)
• Operating Altitude: 0 to 10,000 ft.
• Shock and Vibration (bulkhead mounted)
• Shock: 200 g @ 10 ms Vibration/Seismic: 50 g, 5-200 Hz, Triaxial

Reliability

• MTBF: >1 Million Hours
• Serial Configuration Port
• Com Parameters: 9600,n,8,1

Network Media

• 10BaseT: ≥Cat3 Cable
• 100BaseTX: ≥Cat5 Cable
• 100BaseFX:  Multimode: 50-62.5/125μm  – Singlemode: 7-10/125μm

Connectors

• 10/100BaseTX: Twenty-four (24) RJ-45 Copper Ports
• 100BaseFX: Two (2) SC or ST Duplex Ports
• Recommended Wiring Clearance
• Front: 4″ (10.2 cm)
• Side: 1″ (2.6 cm)
