Bộ điều khiển 5002U-P Masibus Viet Nam

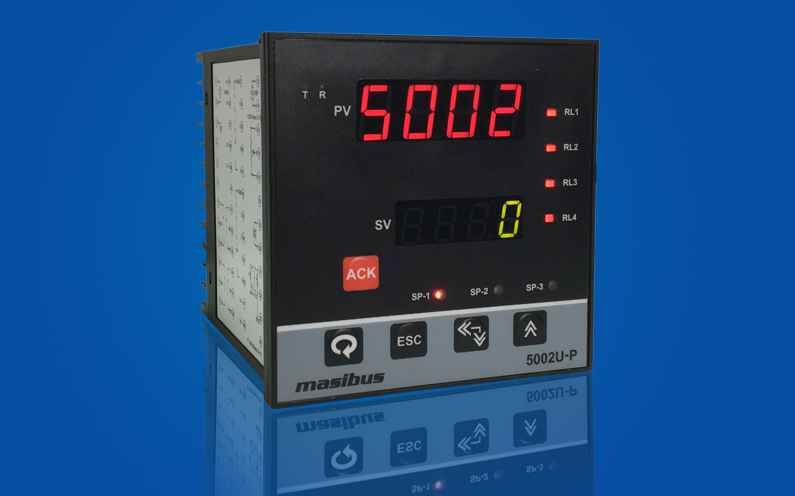

5002U-P Masibus
Masibus 5002U-P is much more than a controller capable for complex and demanding process control applications. It has accessibility of both hardware and software features in compact size making it a highly configurable product, offering many features found in costly programmable controllers.
5002U-P accepts all analog process inputs like Thermocouple, RTD, Current and Voltage.
5002U-P offers field configurable Control outputs comprising of ONOFF or Proportional. It has total 4 Relay o/p providing a combination of alarm/control output based on application requirement. A comprehensive controlling can be implemented using four relays with any of required control algorithm like On-off or Proportional control.
Using RS485 interface desired parameters configuration and status can be communicated to SCADA/PLC/DCS applications. Using analog retransmission output important process values can be retransmitted as any standard current or voltage signal.
It has Fail-safe Design protecting the process in case of system malfunctioning.
Features
-
Universal Input selection
-
Premium ON/OFF or Proportional controller
-
Transmitter Power Supply
-
Fast Loop response time of 250mSec
-
Up to 4 Independent programmable relay output
-
22 Alarm types
-
High Accuracy of 0.1% FS
-
Retransmission output (Optional)
-
RS485 port with Modbus RTU protocol (Optional)
-
Input Scalability for Linear input type
-
Output Scalability for all input type
-
Square Root Extraction for Linear input type
-
Settable Digital Filter 0-60 Sec
-
Password Protected menu to avoid unauthorized access
-
Unique one shot Calibration method
Applications
-
Heat treatment furnaces
-
Reheat furnaces
-
Ceramic Kilns
-
Glass Industry
-
Flow/ Pressure control
-
Distillation and Reactor control in Chemical plants
-
Water and waste water control
