Bộ hiển thị nhiệt độ 40005E Masibus Viet Nam

40005E Masibus

Communication

40005E comes with one RS485 port as a standard, a second RS485 port and/or a Ethernet Port are options to enhance the communication capabilities of the unit and use it as an RTU, controller or protection device for parameters like Level, Vibration, Gas detection, etc.

Control or Alarm

The optional 4 or 8 Relay outputs can be freely mapped to any channel set points and configured as control, Alarm or Trip functionality with FailSafe or Normal Logic. Any one relay can also be configured as a watchdog output.

Re-Transmission

An isolated 4-20mA Re-Transmission output option is available for onward transmission to PLC/ DCS/ Recorder/ SCADA

Enclosure

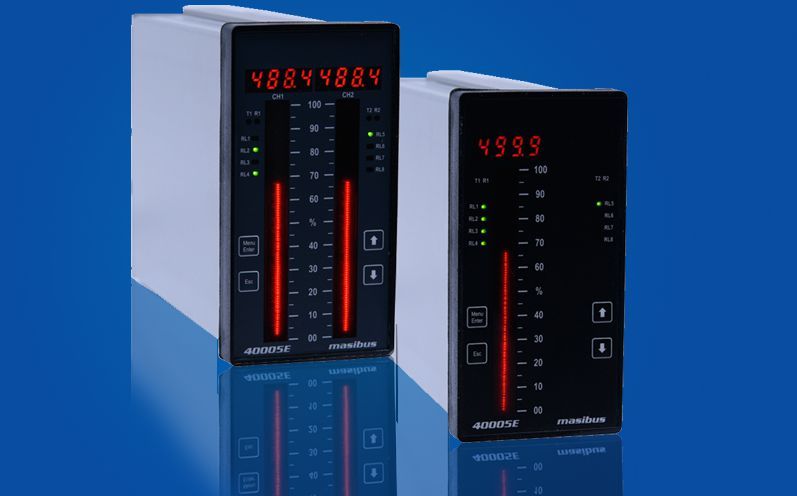

40005E is housed in a 144X72 mm extruded Aluminum enclosure with a IP55 front fascia, all cards are plug-in and Input/Output connections are via multi-pin connector and pre-fab cables.

Features

• Micro controller based

• Full 4 digit numeric & 101 segment bar display

• Universal Input

• Square root extractor

• Fully configurable & programmable by front keypad or PC based configuration software

• Digital calibration

• Built-in Transmitter supply

• Watchdog output

• Power Supply, Input & Output Isolated for 1500VAC

• Options:

• Redundant RS485 serial port

• Retransmission output (Isolated)

• Ethernet (Modnet) port

• 4/8 Relay Output

Applications

• Monitoring of Level, Vibration, Flow, etc

• Alarm/Trip Unit

• On/off Controller

• Digital Switch

• Gas Detection

• Marine-Utility Monitoring on Ships
